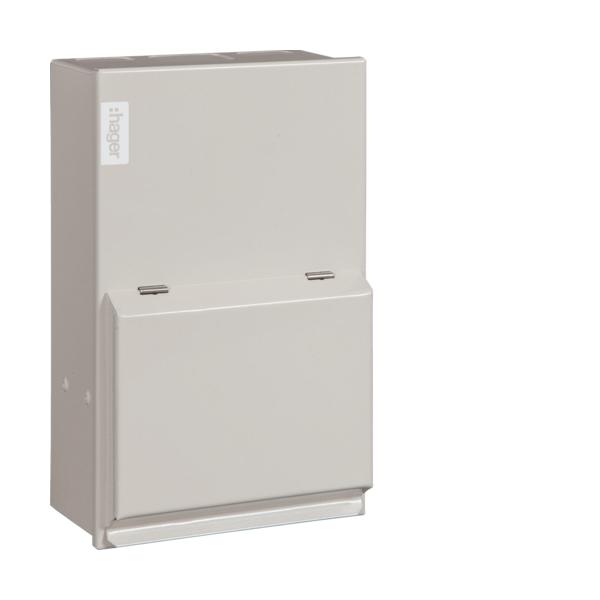

The VML202 Main Switch Consumer Unit enclosures come supplied with a full metal DIN rail, 63A switch disconnector incomer and full complement of earth and neutral terminals along with marking labels, busbar and instructions.
- 63A
- 2 Way
- Complies with BS EN 61439-3 Annex ZB
- Optional HSE & keylock available
Health & Safety Lock
Provides the ability to isolate circuits and secure the consumer unit prior to occupation of property. This elegant solution utilises the form and function of the Design 30 to enable multifunction locking whilst maintaining its original aesthetic.
Amendment 3 Compliant
Provides the ability to isolate circuits and secure the consumer unit prior to occupation of property. This elegant solution utilises the form and function of the Design 30 to enable multifunction locking whilst maintaining its original aesthetic.
Cable Clamp
Prevents any movement of meter tails being transmitted to the terminals of the main switch.
Unlatched Door
Unlatched to ensure the door is always left in the closed position maintaining the non-combustable integrity of the unit.
Grommet Strip
Grommet strip included to provide a safe edge for cable entry with any knockout
Locate and hold cover
Locates and holds the cover during installation, reduces risk of damage leaving both hands free to fix the cover to the base.
Multiple Fixing Points
Enables easy and accurate installation whether fitting into new or existing buildings
Multiple Knockouts
- Rear Knockouts - Provide ample cabling capacity for any installation
- Top Knockouts - Designed to accomodate 25x40mm, 50x50mm & 100x50mm domestic trunking
- Bottom Knockouts - Allow entry of meter tails and main earth conductor with grommet strip installed.
- Bottom Knockouts - To suit 25mm x 40mm trunking
Cable Space
The design range continues with a great offering of ample cable space, especially great if you are fitting RCBOs.
Full Metal DIN Rail
Robust and secure, ensuring no deformation providing correct alignment of devices
