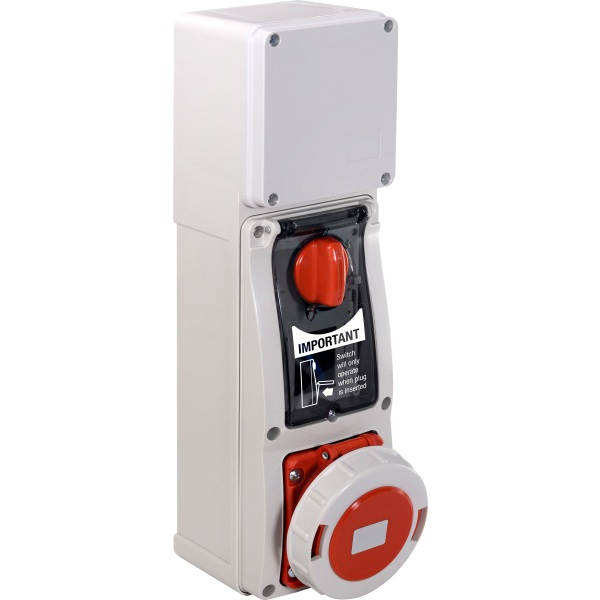

IP67 63A 3P+E 415v Red Vertical sw/ Interlocked socket

Technical Specifications

Voltage	415V
Huws Gray Part No	U0133814
Colour	Red
Guarantee	12 Months
IP Rating	IP67
Material	Plastic/Metal Parts
Weight (kg)	2.380 Kg
Standards	IEC/CEI/EN 60309-1, IEC/CEI/EN 60309-57
Dimensions	420mm x 130mm x 175mm
IK Rating	IK08 ( IEC /EN 62262)
Manufacturer Part Number	V446343VSW

Documents

• IP67 63A 3P+E 415v Red Vertical sw/ Interlocked so - Data Sheet (635.8 KB)
• IP67 63A 3P+E 415v Red Vertical sw/ Interlocked so - Declaration of Conformity (80.53 KB)
